Introduction

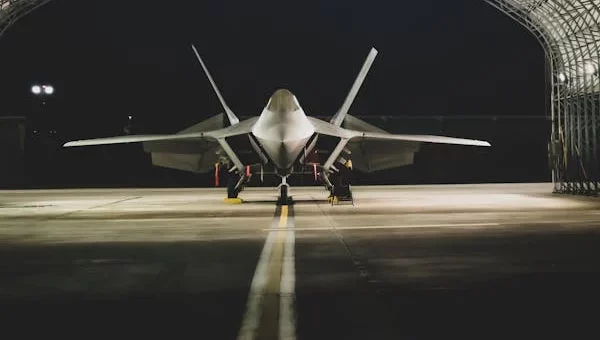

The F-22 Raptor stands as a pinnacle of modern military aviation, blending stealth, speed, agility, and advanced avionics to establish air superiority. Developed by Lockheed Martin and introduced in the early 2000s, the F-22 represents the United States Air Force’s commitment to maintaining dominance in the skies. This article delves deep into the F-22 Raptor’s design, technology, performance, and operational role, offering a comprehensive understanding of what makes this aircraft a legendary stealth fighter.

1. Development History and Strategic Purpose

a. Origins and Development Timeline

The F-22 program began in the 1980s as the Advanced Tactical Fighter (ATF) project, aiming to create a next-generation air superiority fighter to replace aging fleets like the F-15 Eagle:

• The program emphasized stealth capabilities, supercruise (sustained supersonic flight without afterburners), and advanced avionics.

• Lockheed Martin teamed with Boeing and Pratt & Whitney to design and build the aircraft.

• First flight took place in 1997, and it officially entered service with the USAF in 2005.

Development faced challenges due to high costs and technological complexity, but it culminated in one of the most sophisticated fighters ever built.

b. Strategic Role and Mission Profile

The F-22 Raptor’s primary mission is air dominance, ensuring control of the skies in contested environments:

• Designed to engage enemy aircraft before they detect the Raptor using stealth and superior sensors.

• Capable of air-to-air combat, precision ground strikes, intelligence, surveillance, and reconnaissance (ISR).

• Operates as a key element in network-centric warfare, integrating with other platforms.

Its unmatched combination of stealth, speed, and sensor fusion gives it a decisive edge in modern aerial combat scenarios.

2. Stealth Technology: Becoming Invisible to the Enemy

a. Shaping and Materials

The F-22’s stealth is achieved through a combination of design features and materials:

• Angular surfaces and edges reduce radar cross-section by deflecting radar waves away from the source.

• Use of radar-absorbent materials (RAM) covers much of the airframe, dampening radar signals.

• Internal weapons bays allow the Raptor to carry missiles and bombs without external hardpoints, maintaining a clean, low-observable profile.

These design choices allow the F-22 to evade detection by radar systems effectively.

b. Infrared and Acoustic Signature Reduction

Beyond radar stealth, the F-22 minimizes heat and noise signatures:

• Engine nozzles are flat and shielded to reduce infrared emissions.

• Advanced cooling systems help mask heat from engines.

• Design considerations also reduce acoustic noise, making it harder to detect via sound.

This multi-spectral stealth approach ensures the Raptor remains difficult to track with various sensors.

3. Propulsion and Performance Capabilities

a. Pratt & Whitney F119-PW-100 Engines

The heart of the F-22’s performance lies in its powerful twin engines:

• Each engine delivers about 35,000 pounds of thrust, enabling supercruise speeds of around Mach 1.8.

• The engines incorporate thrust vectoring nozzles, allowing exceptional maneuverability.

• Fuel efficiency improvements extend combat range and loiter time.

This propulsion system enables rapid acceleration, sustained supersonic flight, and agile handling in dogfights.

b. Flight Performance and Maneuverability

The F-22 excels in various flight regimes:

• Top speed exceeds Mach 2.0 in short bursts.

• Capable of high angles of attack and rapid changes in direction thanks to thrust vectoring.

• Advanced flight control systems and fly-by-wire technology provide stability and precision.

Its agility allows the Raptor to outmaneuver adversaries, maintain offensive positioning, and evade threats.

4. Avionics and Sensor Systems: The Raptor’s “Brain”

a. Radar and Sensor Fusion

The AN/APG-77 radar is a defining feature of the F-22:

• Active electronically scanned array (AESA) radar provides long-range detection and tracking of multiple targets simultaneously.

• Low probability of intercept (LPI) mode reduces the chance of detection when emitting radar signals.

• Sensor fusion integrates radar data with infrared sensors, electronic warfare systems, and communication links.

This fusion creates a comprehensive battlespace picture, enabling faster and more informed decision-making.

b. Electronic Warfare and Communication Systems

The F-22 includes advanced electronic warfare (EW) capabilities:

• Radar warning receivers detect enemy radar signals and alert pilots.

• Electronic countermeasures can jam or deceive adversary sensors.

• Secure data links allow seamless communication with other aircraft and command centers.

These systems enhance survivability and cooperative engagement in contested environments.

5. Armament and Combat Capabilities

a. Weapons Loadout

The F-22 carries a versatile arsenal suited for various missions:

• Internal bays house six AIM-120 AMRAAM (Advanced Medium-Range Air-to-Air Missiles) and two AIM-9 Sidewinders.

• Capability to carry precision-guided bombs such as JDAMs (Joint Direct Attack Munitions).

• External hardpoints can be used in non-stealth missions for additional weapons.

This mix allows the Raptor to engage air and ground targets effectively while maintaining stealth when necessary.

b. Combat Performance and Real-World Use

Though combat use has been limited, the F-22 has demonstrated impressive capabilities:

• Exercises and tests show its dominance in air superiority roles.

• Deployed in operations supporting air dominance and strike missions.

• Continuous upgrades keep its systems at the cutting edge.

The aircraft’s design philosophy prioritizes first-look, first-shot, first-kill advantage in combat.

Conclusion: The Legacy and Future of the F-22 Raptor

The F-22 Raptor remains a symbol of American aerospace ingenuity, blending stealth, power, and intelligence into a formidable package. It revolutionized fighter design and set a new standard for air dominance fighters worldwide. As the USAF continues to upgrade and complement the Raptor with newer platforms like the F-35, the F-22’s unmatched capabilities will remain vital for decades.

What fascinates you most about the F-22 Raptor? Do you think stealth fighters will dominate future air combat? Share your thoughts and join the discussion about this remarkable aircraft’s place in aviation history.
